Overview

Built for the site, built to last.

Every sanitary unit leaves Castlefreke ready to land, hook up, and use.

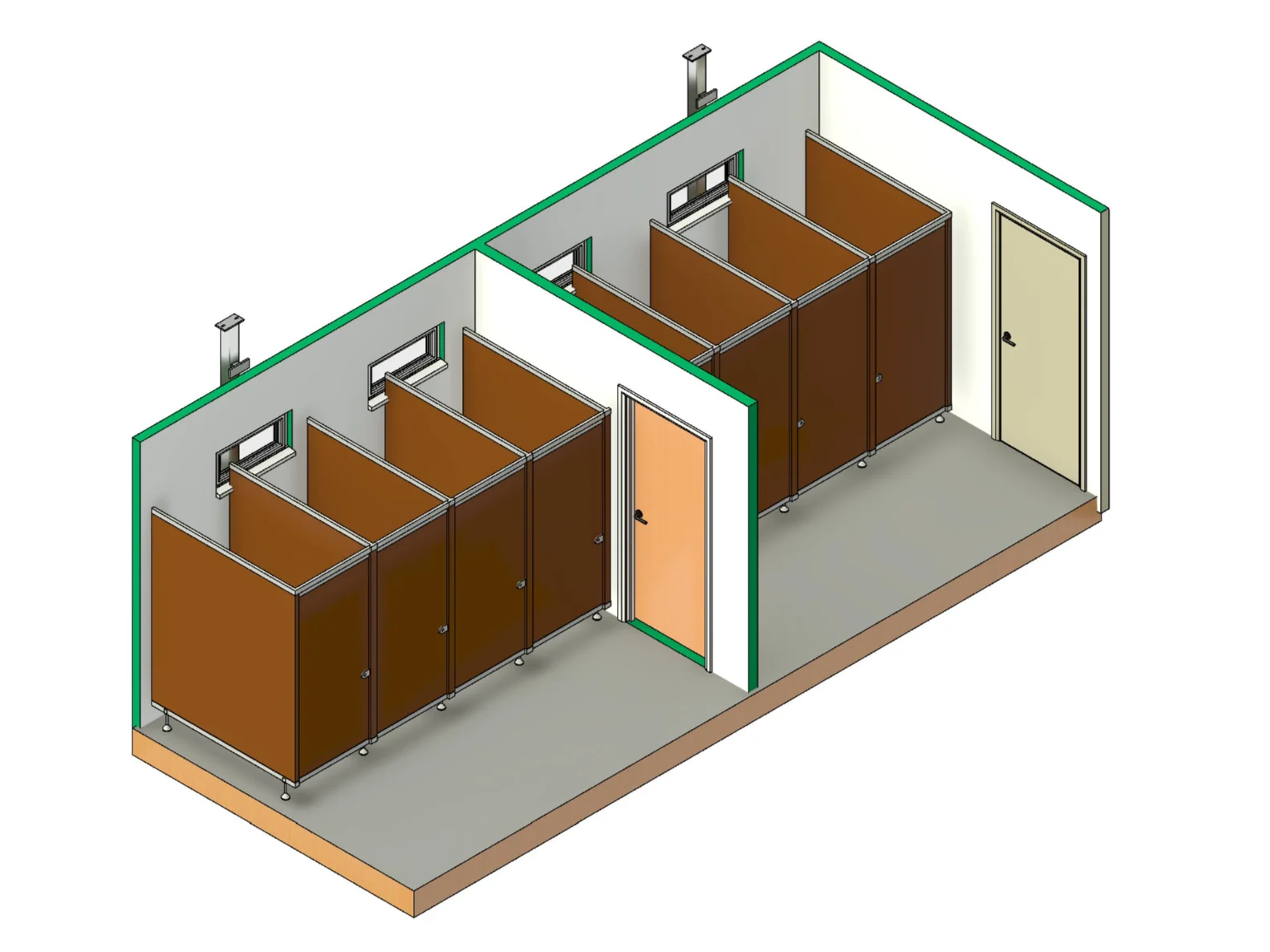

The 24ft x 10ft 8-Cubicle Jackleg Toilet Block provides 8 WC cubicles within a single jackleg unit. A lockable centre partition allows the block to be divided into two fully independent 4-cubicle sections, useful where male and female facilities need separate access points, or where the block serves two distinct areas of a site.

Double-glazed uPVC, consumer unit wiring, LOT 20 compliant panel heater, anti-slip floor throughout. Mains plumbed. Meets statutory requirements for larger project sites.

Available for sale or hire across Ireland. Crane-delivered and positioned.

Construction

Comfort, quality and reliability.

Built to the same higher specification as our cabin range: warmer, better finished and made to stand up to years of site use. Here’s what’s behind the walls.

Interior Finish

Walls internally lined with 12.5mm painted plasterboard. All windows are uPVC to spec, double-glazed. Fully wired internally to a consumer unit with relevant breakers.

Exterior Finish

Walls in one-piece bonded sandwich construction incorporating softwood framing 74mm and 45mm at 1200mm centres. Insulated with ISOEPSHD polystyrene. Lined externally with 0.7mm plastisol coated HDG steel.

Roof Structure

Sheeted internally with vinyl-faced 12.5mm plasterboard on roof joists at 400mm centres. Sheeted externally with one-piece Fatrofol FF870 membrane on 9mm exterior grade plywood. Insulated with 100mm Earthwool.

Floor Structure

Built with 18mm structural WBP plywood, 74mm x 44mm softwood headers and joists at 400mm intervals. Insulated with 50mm PIR insulation. All timber machine pressure impregnated with preservative. Anti-slip floor covering throughout.

FAQ

Common questions.

Can’t find an answer? Call the office on 023 884 8395. All questions →

Plumbed vs serviced, which do I need?

Plumbed (mains-connected) blocks are fit-and-forget for long-term sites with water and foul drainage on the boundary, wired in once, used like a permanent WC. Serviced (vac-tank) units run independent of mains; we partner with a serviced-toilet operator for weekly servicing across your hire. Chemical units carry their own waste tank for short-duration or remote sites.

What’s the difference between jackleg and antivandal toilet cabins?

Same fit-out, different shell. Jackleg sanitary units sit on six adjustable legs in a light steel frame, quicker to land, lighter on transport. Antivandal units are full steel-clad with shuttered windows and reinforced doors, built for unsecured, rural or out-of-hours sites where vandalism is a risk.

Do you do larger multi-cubicle blocks?

Yes. We hold 16ft × 10ft shower blocks (4-cubicle) and 16ft / 20ft toilet blocks (3+1 and 4+1) in stock, plus 24ft × 10ft 8-cubicle blocks for larger crews. For pharma-grade or fully tiled wet-room specifications, we run those as modular builds, call the office for a sit-down spec.

Can you deliver and install on a live site?

Standard. Every sanitary unit is delivered and crane-positioned by our own truck-mounted HIAB fleet, with RAMS and a lift plan from our appointed person issued in advance and all lifting equipment GA1 certified. Plumbed blocks include final connection to your boundary points (water, foul, power) on the day.

Are the toilet cabins for hire, sale, or both?

Both. Short-term sites typically hire weekly or monthly; long-term bases and permanent staff facilities are usually purchase. Shower blocks and larger multi-cubicle units go either way. We’ll price both side-by-side so you can compare.

What’s the difference between a chemical toilet cabin and a plumbed toilet cabin?

A chemical toilet cabin is fully self-contained. No water or drainage connection needed; the waste is held in a tank inside the unit and serviced periodically. Plumbed cabins (the jackleg and antivandal toilet cabins) connect to a mains water and drainage supply, with flushing toilets and a hand-wash basin. Chemical is the simplest to deploy; plumbed gives a closer-to-permanent facility.

Are toilet and shower cabins fully fitted out on delivery?

Yes. Every unit ships fully fitted: sanitaryware, partitions, lighting, ventilation, and LOT 20 compliant panel heaters. The 16ft and 20ft toilet blocks include WC partitions and basins; the shower cabins include cubicles, shower units, and changing-area benches.

Do you handle servicing or emptying of the toilets?

We can advise on local servicing partners for chemical units and on recurring emptying schedules. For plumbed units, the customer manages mains and drainage connections on-site. Our delivery and positioning gets the cabin ready for those connections.

Can you supply combined toilet and shower units?

Yes. The 5ft × 7ft Jackleg Toilet & Shower Cabin combines both in a single wet-room layout. For larger setups, separate toilet and shower cabins can be positioned together and linked. We’ll spec the right combination for the number of users on-site.

Do you deliver across Ireland?

Yes. Every Hayes Cabin Services unit is delivered nationwide from our base in West Cork. The truck-mounted cranes in our fleet lift the unit off the truck and position it exactly where you need it on-site, so no separate crane is required. RAMS and a lift plan produced by our appointed person are issued in advance for every delivery as standard, and all lifting equipment is GA1 certified.

How quickly can you deliver?

Most deliveries are scheduled within 48 to 72 hours of order confirmation, subject to stock and route. For specialist modifications or bespoke builds the lead time is longer. We’ll confirm a firm date in writing before invoice.
